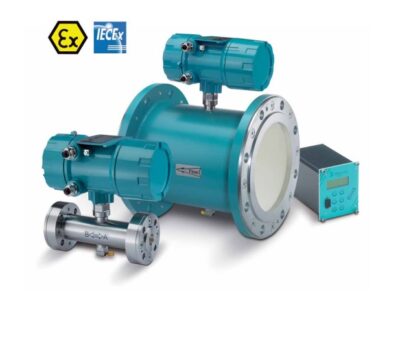

Solid Flow Meter – DYNAmas MF 5000 Capacitive Mass Flow Measurement

Model:

MODEL	DYNAmass MF 5000 - Solids Flow Meter
Accuracy typically	1 - 3 %
Process temperature	standard: max. 130°C (266°F)
Prozess pressure	max. 64 bar (900 lbs)
Ambient cond. temperature	-40°C...+60°C (-40°F...140°F)
Ambient cond. protection class	IP 68 (EN 60529)
Ambient cond. interference immunity	according to EN 61326-1
Parametrierung via CAN-Bus	through DYNAcon / Notebook
Output via CAN-Bus	through DYNAcon: Mass flow rate, concentration, Velocity, failure, simulation value, limits status
CAN-Bus transmission rate	40 kBaud cable length max. 1000 m
Supply voltage	19...31 V DC, max. 10 W
Damping	1-30 s, fast adaptation to rapid change of the value

Microwave flow switch – Mutec FS510M Microwave material flow monitoring

Model: FS510M-2

Specification	Value
Housing Material	Stainless Steel
Sensor Surface	Teflon (Optional Ceramic)
Protection Rating	IP65
Operating Temperature	Ambient: -20°C to +60°C; Process: -20°C to +80°C
Maximum Process Pressure	2 bar (Optional 25 bar)
Power Supply	24 VDC (18–30 VDC)
Output Signal	Potential-Free Relay Contact
Adjustable Parameters	Sensitivity, Damping, Filter, Hysteresis, Min./Max. Switching

Solids Velocity Meter – DYNAvel Velocity measurement

Model: FS510M-1-2-1-1

Parameter	Specification
Measuring Principle	Non-contact solids velocity measurement
Measurement Method	Absolute transit time measurement
Measurement Type	Continuous online velocity measurement
Suitable Applications	Pneumatic conveying and free-fall processes
Measured Materials	Powders, dust, pellets, granules, and bulk solids
Analog Output	4–20 mA
Communication	CAN-Bus
Maintenance	Maintenance-free operation
Calibration	No calibration required
System Integration	PLC, SCADA, and DYNAcon compatible

Inline particle size analyzer – PA 3000 continuous particle size measurement

Model:

Parameter	Specification
Measuring Principle	Optical inline particle size measurement
Measuring Range	170–6,000 µm
Measurement Speed	Up to 10,000 particles per second
Communication Interface	RS485
Alarm Output	Programmable relay outputs
Enclosure Rating	IP65
Process Temperature	-10°C to +60°C (14°F to 140°F)
Hazardous Area Certification	ATEX Zone 2/22 (optional)

Dust Sensor for Monitoring the Ambient Air – DYNAairguard

Model:

Parameter	Specification
Supply (versions with switching output)	24 VDC
Supply (versions with analogue output)	24 VDC
Output (versions with relay switching output)	Max. 48 VAC/DC, 1 A; NC (normally open) / NO (normally closed) selectable
Output (versions with analogue output)	4–20 mA (active), galvanically isolated, Load < 500 Ω
Sensitivity	From 0.1 mg/m³
Damping	0–10 s
Switching Point (versions with switching output)	Adjustable from 1 to 10
Comparison (versions with analogue output)	4 mA = Zero level
Ambient Temperature	-20 °C to +50 °C (-4 °F to 122 °F)
Flow Rate	Approx. 100 m³/h
Noise Development	29 dB(A)
Material – Flow Channel	Painted steel
Material – Electronics Housing	Stainless Steel 1.4301
Material – Sensor Rod	Stainless Steel 1.4571
Sensor Rod Insulation	PA
Seal Material	FPM
Degree of Protection	IP20 (EN 60529)
Electromagnetic Compatibility (EMC)	According to EN 61326-1
Weight	5 kg

Microwave barrier and contactless level monitoring of bulk materials – MUTEC LevelCheck LC 510

Model:

Technical Specifications

Parameter	Specification
Measuring Technology	Contactless Microwave Barrier
Supply Voltage	18–30 VDC (24 VDC nominal)
Current Consumption	Approx. 80 mA
Relay Output	1 × Potential-free changeover relay, 1 × READY relay
Housing Material	Stainless Steel
Sensor Surface	Teflon (optional Ceramic for abrasive applications)
Protection Class	IP65
Ambient Temperature	-10°C to +70°C*
Process Temperature	-20°C to +90°C*
Process Pressure	0.8–1.1 bar standard (higher pressure versions available)
Maximum Detection Distance	Up to 25 m
ATEX Version	Optional, suitable for Zone 21 and Zone 20 with AD510 adapter

Solid Flow Meter – MUTEC DYNArad MF 9000

Model:

Technical Specifications

Specification	DYNArad MF 9000
Product Name	DYNArad MF 9000 Mass Flow Meter
Measurement Method	DYNAvel electrostatic velocity measurement + radiometric density measurement
Velocity Range	Approx. 0.5–100 m/s*
Concentration Range	Dilute phase to dense phase conveying
Flow Range	Up to 500 t/h*
Pipe Size	DN100–DN400
Operating Pressure	Up to 64 bar
Protection Class	IP67
Accuracy	Up to ±1% (application dependent)
Housing	Rugged industrial housing for harsh environments
Installation	Pneumatic conveying pipelines and vertical free-fall systems

Mutec MF 3000 Bulk Solids Mass Flow Meter

Model:

Parameter	Specification
Measurement start (Free-fall)	From approximately 20 kg/h
Measurement start (Pneumatic conveying)	From approximately 1 kg/h
Maximum pipe diameter	Up to DN 300 (12")
Particle size	Approximately 1 nm to 20 mm
Material moisture	Suitable for dry bulk materials with varying moisture content
Process pressure	Standard 6 bar, temporary up to 30 bar
Process temperature	Standard -20°C to +90°C, optional versions up to +450°C
Construction	Wall-mounted industrial transmitter
Auxiliary power	100–240 VAC, 50/60 Hz (optional versions available)
Power consumption	Approximately 20 VA
Ambient temperature	-20°C to +60°C
Protection class	IP65

Continuous inline moisture measurement Mutec DYNAmoist – Humy 301

Model:

Specification	Value
Measuring Range	0–85% Residual Moisture or 15–100% Dry Matter (TR)
Accuracy	Up to ±0.1% (material dependent)
Power Supply	24 VDC
Power Consumption	Max. 1.5 W
Operating Pressure	6 bar (10 bar temporary)
Protection Rating	IP67
Ambient Temperature	0 to +70°C or +80°C (depending on version)
Process Temperature	Up to +120°C (High Temperature Option, Non-ATEX)
Communication	RS485 Modbus
Analog Outputs	0/4–20 mA or 0–10 V

ĐO KÍCH THƯỚC HẠT TRỰC TUYẾN (IN-LINE) THEO THỜI GIAN THỰC – DYNAsize/ PA 3000

Model:

Dải kích thước hạt	170 - 6,000 µm
Tốc độ đo	Lên tới 10,000 hạt/giây
Kích thước đường ống	DN200, DN250, DN300 (Kết nối mặt bích)
Nhiệt độ quy trình	-10°C đến +60°C
Áp suất quy trình	Tối đa 6 bar
Cấp bảo vệ	IP 65

CẢM BIẾN ĐO NỒNG ĐỘ BỤI ĐỂ GIÁM SÁT KHÔNG KHÍ XUNG QUANH (Dust sensor for monitoring the ambient air) – DYNAairguard – DS 300

Model:

Nguồn cấp: 24 VDC.
Độ nhạy: Từ 0.1 mg/m³
Nhiệt độ môi trường: -20℃ đến 50℃.
Vật liệu vỏ điện tử: Thép không gỉ (Stainless steel 1.4301).
Vật liệu thanh cảm biến: Thép không gỉ (Stainless steel 1.4571).
Vật liệu ống dẫn khí: Thép sơn tĩnh điện.
Cấp bảo vệ: IP20 (theo tiêu chuẩn EN 60529).

ĐỒNG HỒ ĐO LƯU LƯỢNG KHỐI LƯỢNG LỚN (Speed Measurement of bulk solids and powder) DYNArad – MF9000

Model:

Model: MF9000 (Speed Measurement of bulk solids and powder) – Dòng thiết bị đo chuyên dụng cho lưu lượng khối lượng lớn.
Phương pháp đo: Sử dụng công nghệ không tiếp xúc (Non-contact) và không xâm lấn (Non-intrusive), đo xuyên qua thành ống mà không chạm vào vật liệu.
Ứng dụng đa năng: Hoạt động hiệu quả trên cả hệ thống băng tải khí nén (Pneumatic conveyors) và các đường ống rơi tự do (Free-fall).
Vật liệu đo: Tương thích với đa dạng nguyên liệu rời như bột, hạt, viên nén, khoáng sản, than đá, xi măng...

Cảm Biến Đo Lưu Lượng Chất Rắn Mutec (DYNAmflow – MF 3000, DYNAmas – MF 5000, DYNAchute – MF 7000)

Model:

Nguyên lý đo: Điện dung (Capacitive) kết hợp đo vận tốc thời gian thực.
Dải lưu lượng: Rất rộng, từ lượng nhỏ (0.1 kg/h hoặc 50 kg/h) lên đến hơn 400 - 500 tấn/giờ.
Kích thước đường ống: 10 kích thước từ DN25 đến DN300 (1 inch đến 12 inch).
Độ chính xác: Điển hình từ 1% đến 4%.
Môi trường ứng dụng:
Vận chuyển khí động (cả pha loãng và pha đặc/dense phase).
Rơi tự do.
Có thể lắp đặt ở đường ống đứng, ngang hoặc nghiêng.
Tiêu chuẩn an toàn: Đạt chuẩn phòng nổ EX zone 20 hoặc 1.

FC/FD Series Mini Float Level Switch

Model:

FC/FD Series Magnetic Float Level Switch

Model:

FF Side Mounting Float Switch

Model:

EPD Series Electromagnetic Flowmeter

Model:

SF Series Paddle Type Level Switch

Model:

SP Series Thermal Dispersion Flow Switch

Model:

EF Series By-Pass Level Transmitter

Model:

BV Series Pneumatic Vibrator

Model:

Features BV Series Pneumatic Vibrator Special Aluminum body, low noise, high vibration frequency, small size and light weight. Frequency and amplitude of vibration can be adjusted as required Low price and durable. The strongest vibration force drove by roller among other same size products Sudden activation/ deactivation Read More: Pneumatic products

BA Series Air Hammer

Model:

Features BA Series Air Hammer 1. One impact wave per one shot. 2. Highly strengthened aluminum structure. 3. Impact force and interval timing can be set by request. 4. Extended magnetic strength to increase piston impact power Read More: Pneumatic products

EPR Series Webbed Wheel Flowmeter

Model:

PT Series PID+Fuzzy Temperature Controller

Model:

Features PT Series PID+Fuzzy Temperature Controller Adapts microprocessor control circuit, modular design, advanced digital calibration, and switching power supply technology Modulized design is a concept to adapt different analog input signals by means of changing different signal board (such as temperature, pressure, alternating voltage, electric current.). Also, optional output board could add the analog output...

PB/PM Series Bargraph_Digital display Panel Meter

Model:

SRS Series Safety Cable Pull Switch

Model:

Features SRS Series Safety Cable Pull Switch Universal design for bi-direction activation Compact design for tight-fit areas, IP67 rugged die cast aluminum housing Manual reset lever Easily orientated at either end or intermediate position in pull cable run Cable Pull 30° for shutting down system Highly visible black arm easily shows condition of the switch,...

SRT Series Conveyer Belt Misalignment Switch

Model:

Features SRT Series Conveyer Belt Misalignment Switch Easy Installation, operation sensitive Roller arm can move up to 75 degrees in either direction Dust tight, IP 67 weatherproof, Die cast aluminum housing Roller lever actuating angle 20 for alarm signal and 35° for shutting down system To Save Process downtime, product loss and replacing cost of...

ED Series Speed Monitor

Model:

Features ED Series Speed Monitor Maximum monitoring range 1~999rpm. 7-seg led display 0~999 Alarm monitoring: low speed, stop, reverse, blackout and overload. Start up delay function allow motor to run up gradually. Alarm delay function can avoid fault alarm which many caused by temporary slow down or load changed. Selectable rotate direction for both CCW...

TX10 Series Isolated safety barrier

Model:

RA Series Air Pad

Model:

Description RA series is an aerator product line designed to replace the escaped air into a powder material in a bin, silo or other type of vessel so that the material will become fluid again and flow. The RA series is complimentary to the BV series of industrial vibrators. The RA series is of a...

AE Series Controller for Dust Collector System

Model:

Specification AE Series Controller for Dust Collector System Digital display, provides easy operation and shows operating status. Precision microprocessor operation. Convenient control via remote control. Cyclic pulses can be performed automatically even after the system is turned off to prevent sediment from accumulating on the filter bag. The waterproof and dustproof housing prolongs the life...

BRD/BDV Series Diaphragm Valve

Model:

Feature BRD/BDV Series Diaphragm Valve Fluids: Air filtered and oil free air Diaphragm material: NBR Operation temp.: -20 ~ 85ºC Ambient temp.: -20 ~ 60ºC Read more: Pneumatic products

End device

Model:

Features Power Source: DC 9~30V Signal Input Interface: RS-485*1 RF Interface: 3.5mm SMA Female RF Band: ISM Band 2.4G

Router-FineTek Co., Ltd

Model:

Features Power Source: DC 9~30V RF Interface: 3.5mm SMA Female connector (ANT) RF Band: 2.4G ISM Band

Coordinator

Model:

Features Power Source: DC 5V RF Interface: 3.5mm SMA Female connector (ANT) RF Band: ISM Band 2.4G Interface: USB

HubLink

Model:

Features Power Source: DC 9~30V Signal Input Interface: 1. RS-485*4 2. 4-20mA*4 3. 1 Wire* 4 4. I/O* 4 RF Interface: 3.5mm SMA Female connector (ANT) RF Band: 2.4G ISM Band or Quad band: GSM

Remote Control Unit

Model:

MMS-TLA Materials Management System

Model:

Description The MMS series materials management system includes the MMS-TL and MMS-TLA software systems designed to run on PC’s. The MMS-TL is a materials management system for use in monitoring tank level inventories of liquid or bulk solid materials using a wide variety of Aplus Finetek level transmitter technologies. The MMS-TLA is a materials management...
