Cửa hàng

Showing 1–40 of 1362 results

Xem thêm
Model:

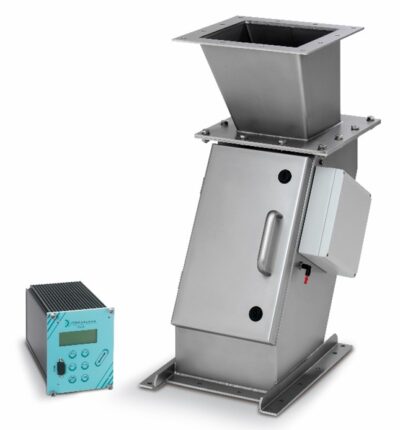

MODELBulk Solids Flow Meter - DYNAchute Chute Weigher
Measurement Range1–50 t/h
Measuring PrincipleGravimetric weighing + non-contact velocity measurement
InstallationVertical free-fall
Housing MaterialStainless Steel 1.4301
Protection RatingIP66
Pressure±0.1 bar
Supply Voltage18–36 VDC (galvanically isolated)
Power Consumption3.5 W
Cable GlandsM20 × 1.5 (Ø6–12 mm cable)
Process Temperature-10°C to +40°C
Ambient Temperature0°C to +50°C
Storage Temperature0°C to +60°C

Model:

ModelMUTEC FlowSwitch FS 710 Dust Monitor
Measuring PrincipleTriboelectric
ApplicationDust Monitoring & Filter Break Detection
Installation PositionClean Air Side of Bag or Cartridge Filters
Process Temperature-20°C to +150°C (Up to +180°C for ATEX version)
Process Pressure0–2 bar
Power Supply24 VDC
Output2 × Relay Contacts (Pre-Alarm & Main Alarm)
Protection ClassIP65
ATEX CertificationOptional, up to Zone 20/21

Model: FS510M-1-1-2

ModelMutec DYNAGuard GM FlowSwitch FS 780
Measuring PrincipleTriboelectric dust monitoring
ApplicationFilter break detection for bag filters and cartridge filters
OutputRelay or 4–20 mA analog output
Rod Length45–800 mm, customizable
Process Temperature−20°C to +90°C (optional 130°C, 200°C, or 290°C versions)
Process Pressure0–6 bar
Protection ClassIP67
Optional FeaturesATEX Zone 2 / Zone 22, food industry version available

Model:

ModelMUTEC Microwave Flow Switch FS 550 with Trend measurement
Measuring technologyMicrowave
Measurement typeContactless trend measurement
Installation distanceSeveral meters
Supply voltage24 VDC (18–30 VDC)
Analog output4–20 mA
HousingStainless steel
Protection ratingIP65
Process temperature-20 °C to +85 °C
Standard process pressure6 bar
Optional pressure version30–60 bar
Sensor surfaceTeflon (ceramic optional)

Model:

SpecificationValue
MODELMUTEC DYNAguard S FS 620 - Flow switch for bulk solids in flexible hoses
Measurement PrincipleElectrostatic (Contactless)
ApplicationFlexible Hose Flow Monitoring
Sensitivity0.1 mg/m³
OutputRelay, Transistor or 4–20 mA
Operating PressureUp to 10 bar (140 psi)
Operating TemperatureUp to +70°C (158°F)
Protection RatingIP67
Hazardous AreaOptional ATEX Zone 2 / 22

Model:

SpecificationValue
ModelMUTEC Flow Switch FS 600 - Continuous flow monitoring for bulk solids in small pipelines
Measuring principleElectrostatic / Extended triboelectric
Pipe diameter10–100 mm
Housing materialStainless steel (1.4305)
Process couplingStainless steel (1.4571)
Ambient temperature-20°C to +70°C
Process temperature-20°C to +90°C
Process pressureUp to 40 bar
Protection classIP67
Power supply17–31 VDC
Current consumption60–90 mA
Output optionsRelay, Transistor or 4–20 mA
Hazardous area optionATEX Zone 20 or Zone 2 (optional)

Model:

MODELDYNAmass MF 5000 - Solids Flow Meter
Accuracy typically1 - 3 %
Process temperaturestandard: max. 130°C (266°F)
Prozess pressuremax. 64 bar (900 lbs)
Ambient cond. temperature-40°C...+60°C (-40°F...140°F)
Ambient cond. protection classIP 68 (EN 60529)
Ambient cond. interference immunityaccording to EN 61326-1
Parametrierung via CAN-Busthrough DYNAcon / Notebook
Output via CAN-Busthrough DYNAcon: Mass flow rate, concentration, Velocity, failure, simulation value, limits status
CAN-Bus transmission rate40 kBaud cable length max. 1000 m
Supply voltage19...31 V DC, max. 10 W
Damping1-30 s, fast adaptation to rapid change of the value

Model:

  • Model: ECOCLADFT
  • Vật liệu cách nhiệt : rockwool 80 kg/m3, độ dày rockwool 50mm
  • Bọc vải bằng sợi thủy tinh phủ silicon
  • Chống thấm nước
  • Chịu nhiệt đến 500ºC
  • Nhãn hiệu: EcoClad
  • Nhà sản xuất: ECOZEN
  • Xuất xứ: Việt Nam

Model:

  • Model: ECOCLADFT
  • Vật liệu cách nhiệt : rockwool 80 kg/m3, độ dày rockwool 50mm
  • Bọc vải bằng sợi thủy tinh phủ silicon
  • Chống thấm nước
  • Chịu nhiệt đến 500ºC
  • Nhãn hiệu: EcoClad
  • Nhà sản xuất: ECOZEN
  • Xuất xứ: Việt Nam

Model: FS510M-2

SpecificationValue
Housing MaterialStainless Steel
Sensor SurfaceTeflon (Optional Ceramic)
Protection RatingIP65
Operating TemperatureAmbient: -20°C to +60°C; Process: -20°C to +80°C
Maximum Process Pressure2 bar (Optional 25 bar)
Power Supply24 VDC (18–30 VDC)
Output SignalPotential-Free Relay Contact
Adjustable ParametersSensitivity, Damping, Filter, Hysteresis, Min./Max. Switching

Model: FS510M-1-2-1-1

ParameterSpecification
Measuring PrincipleNon-contact solids velocity measurement
Measurement MethodAbsolute transit time measurement
Measurement TypeContinuous online velocity measurement
Suitable ApplicationsPneumatic conveying and free-fall processes
Measured MaterialsPowders, dust, pellets, granules, and bulk solids
Analog Output4–20 mA
CommunicationCAN-Bus
MaintenanceMaintenance-free operation
CalibrationNo calibration required
System IntegrationPLC, SCADA, and DYNAcon compatible

Model:

ParameterSpecification
Measuring PrincipleOptical inline particle size measurement
Measuring Range170–6,000 µm
Measurement SpeedUp to 10,000 particles per second
Communication InterfaceRS485
Alarm OutputProgrammable relay outputs
Enclosure RatingIP65
Process Temperature-10°C to +60°C (14°F to 140°F)
Hazardous Area CertificationATEX Zone 2/22 (optional)

Model:

ParameterSpecification
Supply (versions with switching output)24 VDC
Supply (versions with analogue output)24 VDC
Output (versions with relay switching output)Max. 48 VAC/DC, 1 A; NC (normally open) / NO (normally closed) selectable
Output (versions with analogue output)4–20 mA (active), galvanically isolated, Load < 500 Ω
SensitivityFrom 0.1 mg/m³
Damping0–10 s
Switching Point (versions with switching output)Adjustable from 1 to 10
Comparison (versions with analogue output)4 mA = Zero level
Ambient Temperature-20 °C to +50 °C (-4 °F to 122 °F)
Flow RateApprox. 100 m³/h
Noise Development29 dB(A)
Material – Flow ChannelPainted steel
Material – Electronics HousingStainless Steel 1.4301
Material – Sensor RodStainless Steel 1.4571
Sensor Rod InsulationPA
Seal MaterialFPM
Degree of ProtectionIP20 (EN 60529)
Electromagnetic Compatibility (EMC)According to EN 61326-1
Weight5 kg

Model:

Technical Specifications

ParameterSpecification
Measuring TechnologyContactless Microwave Barrier
Supply Voltage18–30 VDC (24 VDC nominal)
Current ConsumptionApprox. 80 mA
Relay Output1 × Potential-free changeover relay, 1 × READY relay
Housing MaterialStainless Steel
Sensor SurfaceTeflon (optional Ceramic for abrasive applications)
Protection ClassIP65
Ambient Temperature-10°C to +70°C*
Process Temperature-20°C to +90°C*
Process Pressure0.8–1.1 bar standard (higher pressure versions available)
Maximum Detection DistanceUp to 25 m
ATEX VersionOptional, suitable for Zone 21 and Zone 20 with AD510 adapter

Model:

Technical Specifications

SpecificationDYNArad MF 9000
Product NameDYNArad MF 9000 Mass Flow Meter
Measurement MethodDYNAvel electrostatic velocity measurement + radiometric density measurement
Velocity RangeApprox. 0.5–100 m/s*
Concentration RangeDilute phase to dense phase conveying
Flow RangeUp to 500 t/h*
Pipe SizeDN100–DN400
Operating PressureUp to 64 bar
Protection ClassIP67
AccuracyUp to ±1% (application dependent)
HousingRugged industrial housing for harsh environments
InstallationPneumatic conveying pipelines and vertical free-fall systems

Model:



ParameterSpecification
Measurement start (Free-fall)From approximately 20 kg/h
Measurement start (Pneumatic conveying)From approximately 1 kg/h
Maximum pipe diameterUp to DN 300 (12")
Particle sizeApproximately 1 nm to 20 mm
Material moistureSuitable for dry bulk materials with varying moisture content
Process pressureStandard 6 bar, temporary up to 30 bar
Process temperatureStandard -20°C to +90°C, optional versions up to +450°C
ConstructionWall-mounted industrial transmitter
Auxiliary power100–240 VAC, 50/60 Hz (optional versions available)
Power consumptionApproximately 20 VA
Ambient temperature-20°C to +60°C
Protection classIP65

Model:

MODELIn-line moisture measurement MUTEC HUMY 301
Measuring Range0–85% Residual Moisture or 15–100% Dry Matter (TR)
AccuracyUp to ±0.1% (material dependent)
Power Supply24 VDC
Power ConsumptionMax. 1.5 W
Operating Pressure6 bar (10 bar temporary)
Protection RatingIP67
Ambient Temperature0 to +70°C or +80°C (depending on version)
Process TemperatureUp to +120°C (High Temperature Option, Non-ATEX)
CommunicationRS485 Modbus

Model:

  • Model: ECOCLADFT
  • Vật liệu cách nhiệt : rockwool 80 kg/m3, độ dày rockwool 50mm
  • Bọc vải bằng sợi thủy tinh phủ silicon
  • Chống thấm nước
  • Chịu nhiệt đến 260ºC
  • Nhãn hiệu: EcoClad
  • Nhà sản xuất: ECOZEN
  • Xuất xứ: Việt Nam

Model: EPD

  • Model: EPD
  • Chất liệu: Hộp kim nhôm/ Thép không gỉ
  • Size: DN40 - DN300
  • Kết nối: Bích/ Clamp
  • Độ chính xác: ±0.5% (0.2%)
  • Áp suất hoạt động: 10bar
  • Nhiệt độ hoạt động: -20 ~ 120ºC
  • Cấp bảo vệ: IP67
  • Đạt chuẩn đo lường: OIML
qr code

Model: FS510M-1-2-2-1

Vật liệu thân vỏ

Thép không gỉ (Inox) 1.4301 / AISI 304 (Tiêu chuẩn)

Vật liệu ống cảm biến

Nhựa epoxy gia cường sợi thủy tinh

Vật liệu gioăng làm kín

Cao su Fluor (FPM)

Nhiệt độ môi trường

-20°C đến +70°C (-4°F đến 158°F)

Nhiệt độ quy trình

-20°C đến +130°C (-4°F đến 266°F)

Áp suất tối đa

16 bar (230 lbs)

Cấp bảo vệ

IP 67 (theo chuẩn EN 60529)

Model: FS510M-1-2-2

  • Vật liệu vỏ (Housing): Thép không gỉ 1.4305 (AISI 303).
  • Vật liệu tấm cảm biến (Sensor plate): Thép không gỉ 1.4571 (AISI 316Ti).
  • Cấp bảo vệ: IP 67 (theo chuẩn EN 60529).
  • Nhiệt độ môi trường hoạt động: -20°C đến +70°C.
  • Nhiệt độ quá trình (Process temp): Tối đa 90°C (Tiêu chuẩn).
  • Áp suất tối đa: 6 bar.
  • Nguồn cấp điện:..31 V DC.

Model: FS510M-1-2-1

  • Đo lường không tiếp xúc (Contact-less)
  • Không cần hiệu chuẩn (No calibration)
  • Hoạt động bền bỉ, không cần bảo trì
  • Dải động học rộng

Model: FS510M-1-2

Độ nhạy (Sensitivity)

Từ 0.1 mg/m³

Vật liệu vỏ điện tử

Thép không gỉ 1.4305 (AISI 303)

Vật liệu ống cảm biến

POM (bản tiêu chuẩn) hoặc PA (bản Ex)

Vật liệu đệm kín (Seal)

NBR (tiêu chuẩn) hoặc FPM (bản Ex)

Nhiệt độ môi trường

-20°C ... +70°C

Nhiệt độ quy trình (Process)

Tối đa 70°C

Model:

Dải kích thước hạt170 - 6,000 µm
Tốc độ đoLên tới 10,000 hạt/giây
Kích thước đường ốngDN200, DN250, DN300 (Kết nối mặt bích)
Nhiệt độ quy trình-10°C đến +60°C
Áp suất quy trìnhTối đa 6 bar
Cấp bảo vệIP 65

Model:

  • Nguồn cấp: 24 VDC.
  • Độ nhạy: Từ 0.1 mg/m³
  • Nhiệt độ môi trường: -20℃ đến 50℃.
  • Vật liệu vỏ điện tử: Thép không gỉ (Stainless steel 1.4301).
  • Vật liệu thanh cảm biến: Thép không gỉ (Stainless steel 1.4571).
  • Vật liệu ống dẫn khí: Thép sơn tĩnh điện.
  • Cấp bảo vệ: IP20 (theo tiêu chuẩn EN 60529).

Model:

  • Model: MF9000 (Speed Measurement of bulk solids and powder) – Dòng thiết bị đo chuyên dụng cho lưu lượng khối lượng lớn.

  • Phương pháp đo: Sử dụng công nghệ không tiếp xúc (Non-contact)không xâm lấn (Non-intrusive), đo xuyên qua thành ống mà không chạm vào vật liệu.

  • Ứng dụng đa năng: Hoạt động hiệu quả trên cả hệ thống băng tải khí nén (Pneumatic conveyors) và các đường ống rơi tự do (Free-fall).

  • Vật liệu đo: Tương thích với đa dạng nguyên liệu rời như bột, hạt, viên nén, khoáng sản, than đá, xi măng...

Model: FS510M-1-1-1

  • Nhiệt độ quá trình: -20°C đến +85°C.

  • Áp suất quá trình: Tiêu chuẩn 6 bar (Tùy chọn phiên bản chịu áp cao 30-60 bar qua adapter).

  • Vật liệu mặt cảm biến: Teflon (tiêu chuẩn) hoặc Ceramic (tùy chọn).

Model: MUT2200EL

  • Model: MUT2200EL
  • Size: DN15 - DN2000
  • Chất liệu: inox 304/316
  • Nhiệt độ hoạt động:
    • PTFE: -40 ~ 130ºC (180ºC nếu yêu cầu)
    • Ebonite: -40 ~ 80ºC
  • Cấp bảo vệ: IP68
  • Đạt chuẩn: OIML

Model: EST110-1-1-1

  • Nguồn cấp: 9-30 Vdc.

  • Dải nhiệt độ hoạt động: -10°C đến 85°C.

  • Chiều dài cáp tối đa: 30 mét.

  • Số lượng cảm biến: Tối đa 30 điểm đo nhiệt độ trên một dây.

  • Tốc độ lấy mẫu: Đo mức ≤ 1 giây; Đo nhiệt độ < 1 giây/nút.

Model:

  • MMS-TL: Tương thích với các cảm biến đo mức như dòng EB, EE, EG, FG và thiết bị đo mức dòng JFR.

  • MMS-TLA: Tối ưu hóa cho hệ thống giám sát ngũ cốc sử dụng cáp đo nhiệt độ EST110 và EST120.

  • Giao diện: Cung cấp giao diện đồ họa trực quan và hiển thị dữ liệu thời gian thực.

  • Phần cứng: Tùy chọn tích hợp sẵn Máy tính Công nghiệp (Industrial PC).

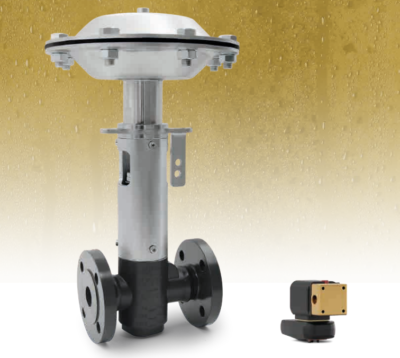

Model: EV25S/ EV25G-1-1-1

  • Model: VPA26/2S (Thép Carbon) và VPA26/2i (Thép không gỉ).

  • Kích thước (Sizes): DN20 (3/4") đến DN50 (2").

  • Kiểu kết nối:

    • Bích EN 1092-1 PN40.

    • Bích ASME B16.5 Class 300.

  • Lưu lượng (Kvs):

    • 6.3 m³/h (đối với DN20 - DN32).

    • 16 m³/h (đối với DN40 - DN50).

Model: FS510M-1-1

  • Vật liệu vỏ: Thép không gỉ 1.4305.

  • Vật liệu thanh cảm biến: Thép không gỉ 1.4571.

  • Chiều dài thanh đo: Tùy chỉnh 45 - 800 mm (Khuyến nghị chiều dài tối thiểu bằng 1/3 đường kính ống).

  • Áp suất quy trình: Tối đa 6 bar.

  • Nhiệt độ quy trình:

    • Tiêu chuẩn: -20°C đến +90°C.

    • Tùy chọn nhiệt độ cao: 130°C, 200°C hoặc 290°C.

Model: FS510M-1

  • Vật liệu vỏ: Thép không gỉ 1.4305.

  • Vật liệu phần tiếp xúc (Process coupling): Thép không gỉ 1.4571.

  • Kích thước đường ống hỗ trợ: DN10 đến DN100 (phù hợp chuẩn DIN 2527 hoặc ANSI B16.5).

  • Áp suất quy trình: Tối đa 40 bar.

  • Nhiệt độ môi trường: -20°C đến +70°C.

  • Nhiệt độ quy trình: -20°C đến +90°C.

  • Cấp bảo vệ: IP67 (Chống bụi và nước tuyệt đối).

  • Nguồn cấp: 17-31 VDC.

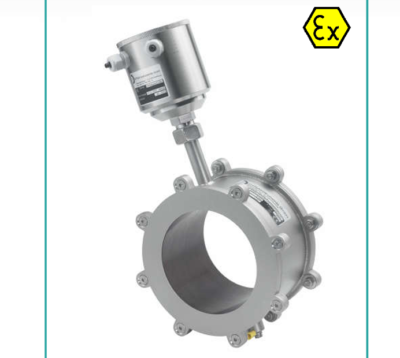

Model:

  • Nguyên lý đo: Điện dung (Capacitive) kết hợp đo vận tốc thời gian thực.
  • Dải lưu lượng: Rất rộng, từ lượng nhỏ (0.1 kg/h hoặc 50 kg/h) lên đến hơn 400 - 500 tấn/giờ.
  • Kích thước đường ống: 10 kích thước từ DN25 đến DN300 (1 inch đến 12 inch).
  • Độ chính xác: Điển hình từ 1% đến 4%.
  • Môi trường ứng dụng:
  • Vận chuyển khí động (cả pha loãng và pha đặc/dense phase).
  • Rơi tự do.
  • Có thể lắp đặt ở đường ống đứng, ngang hoặc nghiêng.
  • Tiêu chuẩn an toàn: Đạt chuẩn phòng nổ EX zone 20 hoặc 1.

Model: Humy-1

  • Nguồn cấp: 24 VDC (+/- 25%).

  • Tín hiệu ngõ ra (Output):

    • Analog: 0/4-20 mA.

    • Digital: RS485 (Modbus protocol) để kết nối PLC.

  • Dải nhiệt độ quy trình: Tối đa lên đến 120°C (với tùy chọn High-temperature).

  • Áp suất quy trình: Chịu được lên đến 6 bar (tối đa 10 bar trong thời gian ngắn).

  • Cấp bảo vệ: IP67 (chống bụi và nước tuyệt đối).

Model: DW12G-SS

Kính quan sát dòng chảy một mặt Adca Model DW12G-SS :

  • Model: DW12G-SS
  • Chất liệu: Gang/ Thép không gỉ
  • Kích thước: DN15 - DN150
  • Kết nối: Bích EN PN16
  • Áp suất tối đa: 16bar
  • Nhiệt độ tối đa: 280ºC

Model: CAD

  • Model: CAD
  • Chất liệu van: Đồng
  • Kích thước: 3/8", 1/2"
  • Kết nối: Ren
  • Áp suất tối đa: 16bar (40, 80bar khi có yêu cầu)
  • Nhiệt độ tối đa: 90ºC
  • Cấp bảo vệ: IP65

Model: 2014

Van bi 2 mảnh nối ren Genebre Model 2014:

  • Model: 2014
  • Size: 1/4" - 3"
  • Vật liệu: Thép không gỉ
  • Áp suất tối đa: PN63
  • Nhiệt độ hoạt động: -25 ~ 180ºC
qr code

Model: 2011

Van bi 2 mảnh nối ren Genebre Model 2011:

  • Model: 2011
  • Vật liệu: Thép không gỉ CF8
  • Áp suất tối đa: PN 40
  • Nhiệt độ hoạt động: -25 ~ 180ºC
  • Size: 1/2" - 1"
qr code

Model: JTR301-12-1-3

Đặc tínhThông số kỹ thuật
ModelSDL1
Phương pháp phát hiệnQuang học hồng ngoại
Đối tượng phát hiệnNước (tiêu chuẩn) và các chất lỏng khác
Nguồn cấp12 ~ 24 VDC
Loại đầu ra (Output)3-wire NPN hoặc 3-wire PNP
Trạng thái đầu raNO (Thường mở) hoặc NC (Thường đóng)
Đèn báoĐèn xanh: Bình thường / Đèn đỏ: Phát hiện rò rỉ
Vật liệu thânPP (Polypropylene) hoặc PFA

6 lý do nên chọn Ecozen

Nhập khẩu Châu Âu, đầy đủ giấy tờ xuất xứ.

Ecozen tư vấn giải pháp cải thiện/mở rộng hệ thống và tối ưu năng lượng.

Hỗ trợ kỹ thuật toàn quốc 24/7. Hội thảo kỹ thuật miễn phí.

4 Văn phòng tại Hồ Chí Minh, Hà Nội, Đà Nẵng, Cần Thơ. Ecozen cung cấp sản phẩm dịch vụ phạm vi toàn quốc.

Đội ngũ kỹ thuật giỏi chuyên môn, giàu kinh nghiệm và tư vấn tận tâm.

Kho hàng có sẵn, đáp ứng tối đa nhu cầu khách hàng.

Giải pháp IoT

No slides available for this category.

Bài viết liên quan

Không có danh mục sản phẩm hiện tại.

Hỗ trợ kỹ thuật / tư vấn báo giá

0901 19 06 08

    Chat Zalo
    Gọi 0901 19 06 08
    //Chữa cháy 07/2026
