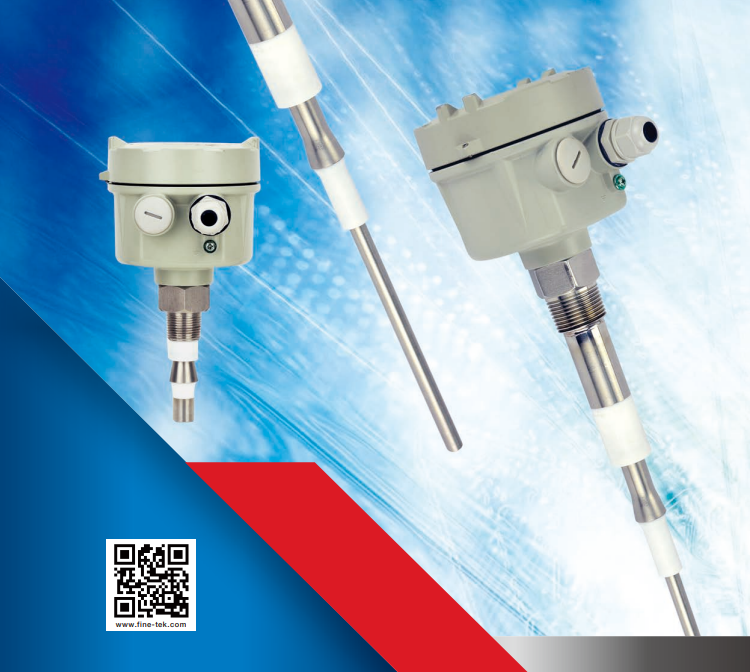

SB Series RF-Capacitance/ Admittance Level Switch

Thông tin cơ bản

Tư vấn sản phẩm/hỗ trợ kỹ thuật

Email: contact@eco-genergy.com

Hotline: 0901 19 06 08

Báo giá Tải Catalog

Features SB Series RF-Capacitance/ Admittance Level Switch

  • Time delay function from 0-30 seconds
  • IP65 housing protection
  • 5 A/250Vac output DPDT
  • High/low failsafe
  • Alarm testing
  • Explosion Proof model available
  • Anti-Viscosity
  • Easy Installation
  • Stable; Not affected by temperatureerature
  • Highest temperatureerature tolerance of 550°C
  • Explosion-proof 450°C
  • Applicable in liquid, syrup, solid, powder,and surface level detection

Applications SB Series RF-Capacitance/ Admittance Level Switch

Storage Tanks, Containers, Wells, Reservoirs and bins containing any liquids, powders or pellets that require precise level detection and control. Key industries include:

  • Breweries
  • Mining
  • Paint Manufacturing Cement
  • Coalt
  • Food Processing
  • Flour Mills
  • Glass Industry
  • Plastics Engineering,
    Polymers and synthetics
  • Paper Manufacturing
    Power Plants
  • Water Treatment and Waste
  • Tar
  • Food and beverages industries

Read More: Solid Level Switch
